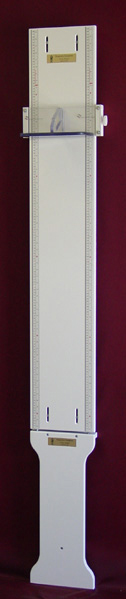

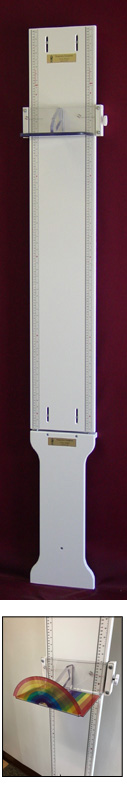

The Easy-Glide Bearing Stadiometer

SUPREME ACCURACY
Double bearing-mounted head piece affords precise measurements. Sliding head piece is sturdy and maintains its perpendicularity with measuring surface, assuring precision year after year.


SMOOTH AND SILENT OPERATION
A marriage of state-of-the-art anodized aluminum and high-lubricity plastic extrusions, produce ultra-smooth and virtually silent bearing operation.


SPEED AND CONVENIENCE
"Read-Here" marks, offset on transparent head piece, facilitate quick unobstructed reading while subject is against stadiometer. Double calibration allows convenient reading from either side of board. Metal positioning knob immobilizes head piece when not in use.


EASY INSTALLATION
Included, is the installation and calibration device which extends stadiometer to floor, facilitating installation, ensuring continually accurate calibration, and providing a heel block.


DURABILITY
High quality, vinyl laminated board holds up to harsh germicidal cleansers. Polycarbonate head piece is impact-resistant.





Optional Accessories:



Installation and Calibration Device
(Models PE-ICD-60-76-BRG4, PE-ICD-60-84-BRG4)
Can be ordered separately to fit existing stadiometers to ensure continually accurate calibration and provide a heel block.


SPECIFICATIONS
Model No.: PE-WM-60-76-BRG4 PE-WM-60-84-BRG4
Measurement Range:
(in):

27 5/8 - 76
73 - 193

35 5/8 - 84
94 - 213
Accuracy
(in):
(mm):

1/16
1

1/16
1
Assembled Length/Width/Height
(in):
(cm):

84 x 10 x 9 3/4
152 x 25 x 25

92 x 10 x 9 3/4
152 x 25 x 25
Weight
(lb):
(kg):

23
10.3

23
10.3
Finish Clinical White Clinical White
Custom lengths and ranges available

Optional Accessories:
Standing Base -
Model #PE-WM-BASE for carpeted or uneven floors.
Replacement Parts:

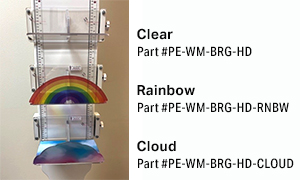

Sliding Head Piece
Part #PE-WM-BRG-HD
Installation and Calibration Device
Part #PE-ICD-60-76-BRG4, or
       #PE-ICD-60-84-BRG4
- Included with all new stadiometer
  purchases OR can be ordered
  separately to fit existing stadiometers.
- Ensures continually accurate calibration
  and provide a heel block.
