The Standard Stadiometer
 |
RELIABLE ACCURACY
Sliding head piece is sturdy and maintains its perpendicularity with measuring surface, assuring repeatable and accurate stature measurements year after year. |
|
SPEED AND EASE
"Read-Here" mark, offset on transparent head piece, facilitates quick unobstructed reading while subject is against stadiometer. |
|
EASY INSTALLATION Included is the Installation and Calibration Device which extends stadiometer to floor, facilitating installation, ensuring continually accurate calibration, and providing a heel block. |
|
DURABILITY
High quality, vinyl laminated board holds up to harsh germicidal cleansers. Polycarbonate head piece is impact-resistant. |
| SPECIFICATIONS | |||

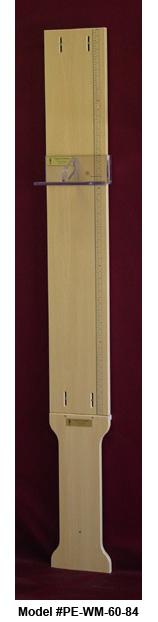

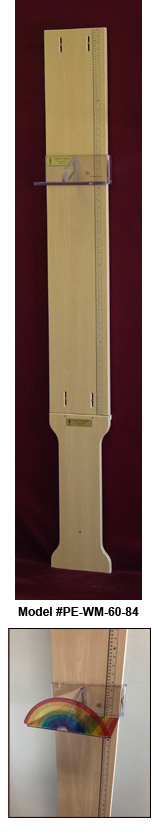

| Model No.: | PE-WM-60-84 | ||
| Measurement Range: (in): |
27 5/8 - 84 70 - 213 |
||
| Accuracy
(in): (mm): |
1/8 3 |
||
| Assembled Length/Width/Height
(in): (cm): |
85 x 10 x 8 3/4 152 x 25 x 25 |
||
| Weight
(lb): (kg): |
18 10 |
||
| Finish | Natural Maple | ||
| Custom lengths and ranges available | |||
|
Optional Accessories: Standing Base Model #PE-WM-BASE for carpeted or uneven floors. |
||
| Replacement Parts: | ||

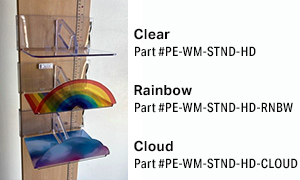

 Sliding Head Piece Part #PE-WM-STND-HD |
 |
Installation and Calibration Device Part #PE-ICD-60-76-BRG4, or #PE-ICD-60-84-BRG4 - Included with all new stadiometer purchases OR can be ordered separately to fit existing stadiometers. - Ensures continually accurate calibration and provide a heel block. |
